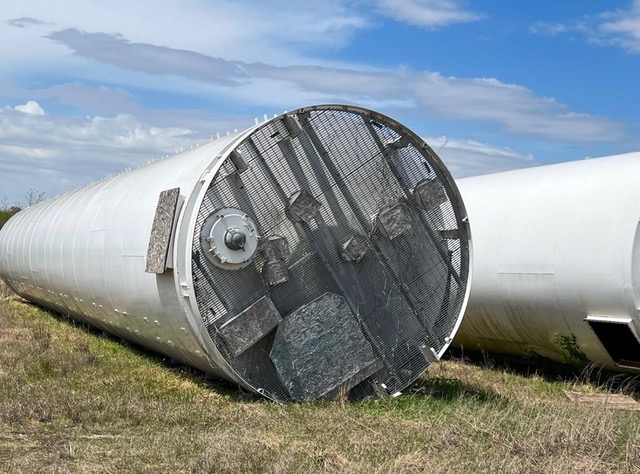

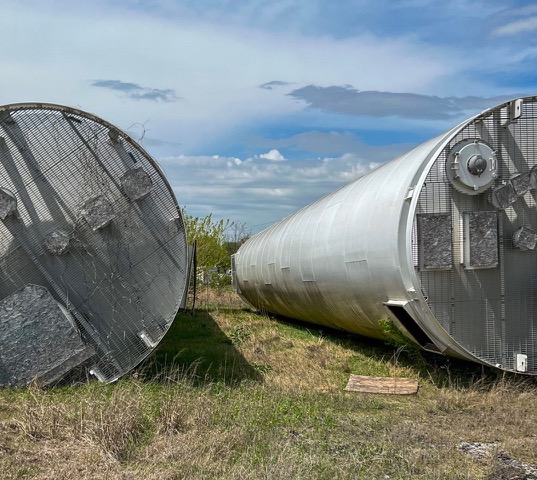

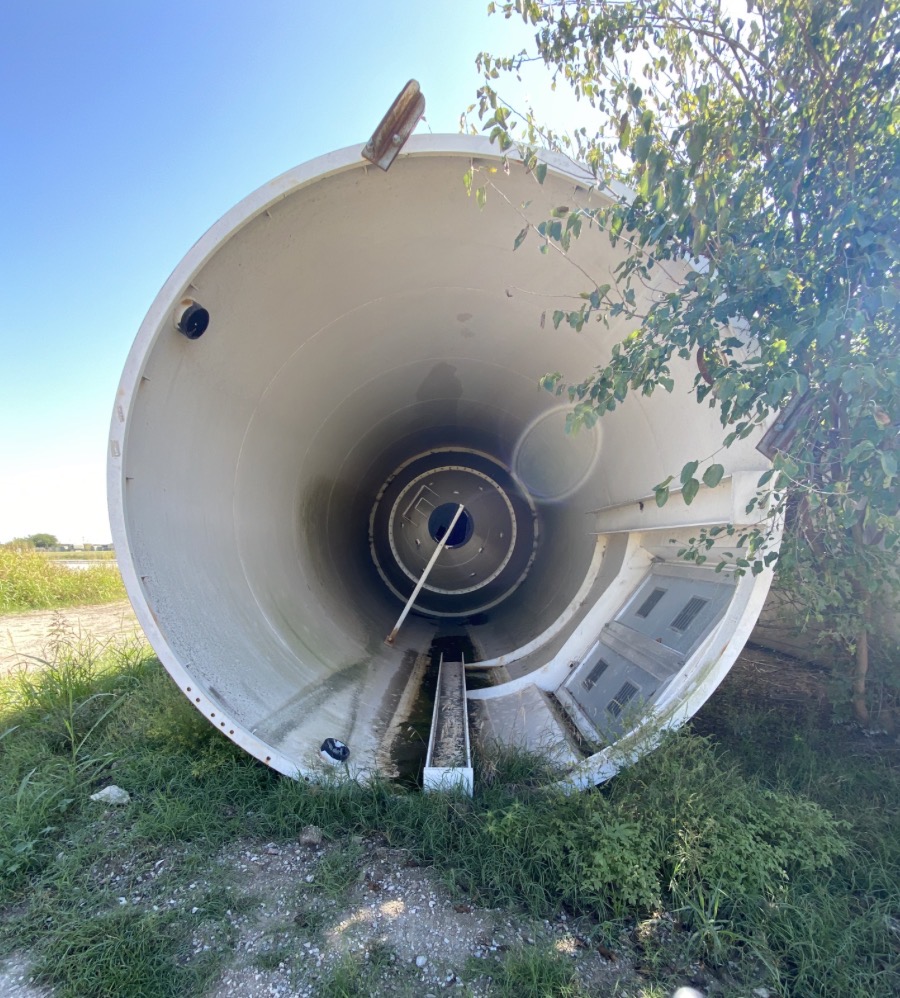

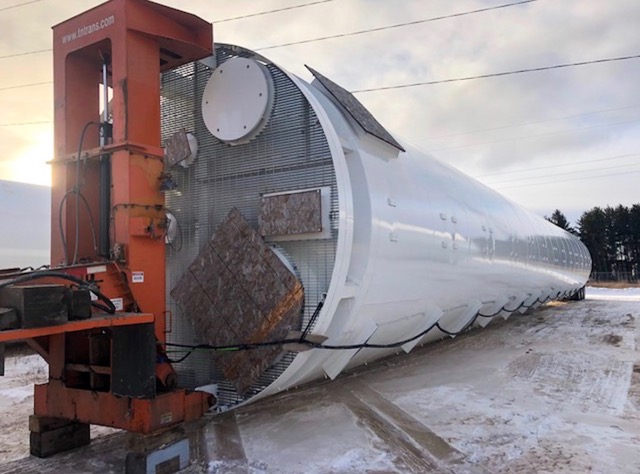

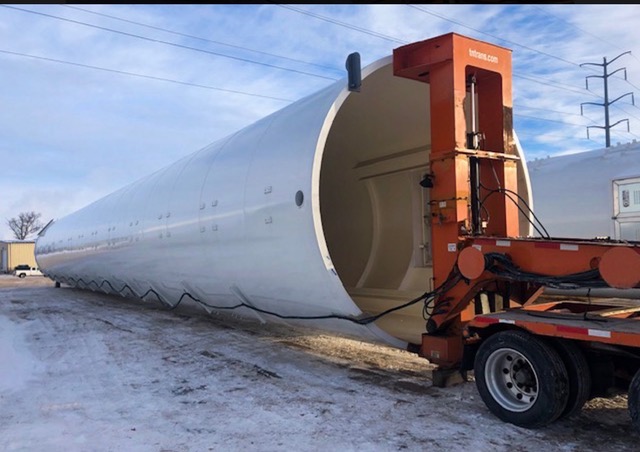

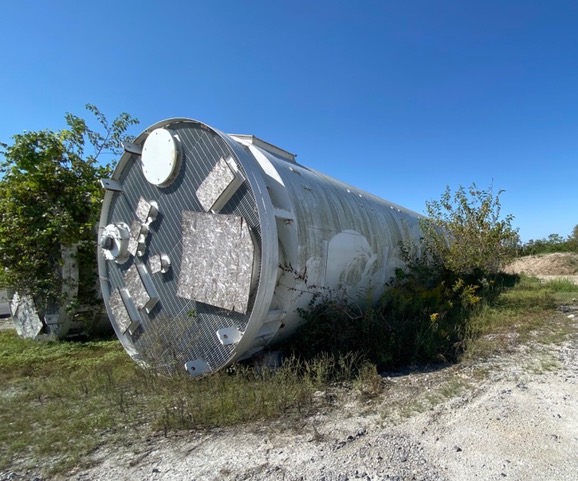

Nol-Tec 14X 100 Silos 48lbs/CFT

Description

Qty.2 available NOL-TEC Capacity 10,750 Cubic Feet Approx. 70 Tons per silo Dimensions 14’ Overall Dia x 100’ Ht Mat’l A36 Carbon Steel (14-ring cylinder) High-Flow Hopper Design Upper Hopper: 3/16” A36 Steel Lower Hopper: 3/16” A36 steel w/ 10ga 304ss liners to prevent bridging Design Standards IBC-2009 / Max Mat’l Density 48 lbs/cu ft Top mounted flange configuration for bin vents or dust filtration Configured for 6” Schedule 40 pneumatic fill and recycle Never installed equipment is currently located in letdown yard and is staged for immediate loading Full assembly drawings are available, including weld schedules and anchor bolt layouts for foundation engineering Year Built 2017 Wt per silo 75,100 lbs. New/Old Stick Priced at a fraction of new. Call Today!
